Over quota, fairness and preemption

This quick start provides a step-by-step walkthrough of the core scheduling concepts - over quota, fairness, and preemption. It demonstrates the simplicity of resource provisioning and how the system eliminates bottlenecks by allowing users or teams to exceed their resource quota when free GPUs are available.

Over quota - In this scenario, team-a runs two training workloads and team-b runs one. Team-a has a quota of 3 GPUs and is over quota by 1 GPU, while team-b has a quota of 1 GPU. The system allows this over quota usage as long as there are available GPUs in the cluster.
Fairness and preemption - Since the cluster is already at full capacity, when team-b launches a new b2 workload requiring 1 GPU , team-a can no longer remain over quota. To maintain fairness, the NVIDIA Run:ai Scheduler preempts workload a1 (1 GPU), freeing up resources for team-b.

Prerequisites

You have created two projects - team-a and team-b - or have them created for you.
Each project has an assigned quota of 2 GPUs.

Step 1: Logging in

Browse to the provided NVIDIA Run:ai user interface and log in with your credentials.

runai login --help

runai login

Step 2: Submitting the first training workload (team-a)

Go to the Workload Manager → Workloads
Click +NEW WORKLOAD and select Training
Select under which cluster to create the workload
Select the project named team-a
Under Workload architecture, select Standard
Select a preconfigured template or select the Start from scratch to launch a new training quickly
Enter a1 as the workload name
Click CONTINUE In the next step:
Create a new environment:
- Click +NEW ENVIRONMENT
- Enter a name for the environment. The name must be unique.
- Enter the training Image URL - runai.jfrog.io/demo/quickstart
- Click CREATE ENVIRONMENT
The newly created environment will be selected automatically
Select the ‘one-gpu’ compute resource for your workload (GPU devices: 1 )
- If ‘one-gpu’ is not displayed in the gallery, follow the below steps:
  - Click +NEW COMPUTE RESOURCE
  - Enter a name for the compute resource. The name must be unique.
  - Set GPU devices per pod: 1
  - Set GPU memory per device:
    Select % (of device) - Fraction of a GPU device's memory
    Set the memory Request - 100 (the workload will allocate 100% of the GPU memory)
  - Optional: set the CPU compute per pod - 0.1 cores (default)
  - Optional: set the CPU memory per pod - 100 MB (default)
  - Click CREATE COMPUTE RESOURCE
The newly created compute resource will be selected automatically
Click CREATE TRAINING

Copy the following command to your terminal. For more details, see CLI reference:

runai training submit a1 -i runai.jfrog.io/demo/quickstart -g 1 -p team-a

Copy the following command to your terminal. For more details, see CLI reference:

runai submit a1 -i runai.jfrog.io/demo/quickstart -g 1 -p team-a

Copy the following command to your terminal. Make sure to update the following parameters. For more details, see Trainings API.

curl --location 'https://<COMPANY-URL>/api/v1/workloads/trainings' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \
--data '{
  "name": "a1",
  "projectId": "<PROJECT-ID>",
  "clusterId": "<CLUSTER-UUID>",
  "spec": {
    "image":"runai.jfrog.io/demo/quickstart",
    "compute": {
      "gpuDevicesRequest": 1
    }
  }
}'

<COMPANY-URL> - The link to the NVIDIA Run:ai user interface
<TOKEN> - The API access token obtained in Step 1
<PROJECT-ID> - The ID of the Project the workload is running on. You can get the Project ID via the Get Projects API.
<CLUSTER-UUID> - The unique identifier of the Cluster. You can get the Cluster UUID via the Get Clusters API.

Note

The above API snippet runs with NVIDIA Run:ai clusters of 2.18 and above only.

Step 3: Submitting the second training workload (team-a)

Go to the Workload Manager → Workloads
Click +NEW WORKLOAD and select Training
Select the cluster where the previous training workload was created
Select the project named team-a
Under Workload architecture, select Standard
Select a preconfigured template or select the Start from scratch to launch a new training quickly
Enter a2 as the workload name
Click CONTINUE In the next step:
Select the environment created in Step 2
Select the ‘two-gpus’ compute resource for your workload (GPU devices: 2)
- If ‘two-gpus’ is not displayed in the gallery, follow the below steps:
  - Click +NEW COMPUTE RESOURCE
  - Enter a name for the compute resource. The name must be unique.
  - Set GPU devices per pod: 2
  - Set GPU memory per device:
    Select % (of device) - Fraction of a GPU device's memory
    Set the memory Request - 100 (the workload will allocate 100% of the GPU memory)
  - Optional: set the CPU compute per pod - 0.1 cores (default)
  - Optional: set the CPU memory per pod - 100 MB (default)
  - Click CREATE COMPUTE RESOURCE
The newly created compute resource will be selected automatically
Click CREATE TRAINING

Copy the following command to your terminal. For more details, see CLI reference:

runai training submit a2 -i runai.jfrog.io/demo/quickstart -g 2 -p team-a

Copy the following command to your terminal. For more details, see CLI reference:

runai submit a2 -i runai.jfrog.io/demo/quickstart -g 2 -p team-a

Copy the following command to your terminal. Make sure to update the following parameters. For more details, see Trainings API.

curl --location 'https://<COMPANY-URL>/api/v1/workloads/trainings' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \
--data '{
  "name": "a2",
  "projectId": "<PROJECT-ID>",
  "clusterId": "<CLUSTER-UUID>",
  "spec": {
    "image":"runai.jfrog.io/demo/quickstart",
    "compute": {
      "gpuDevicesRequest": 2
    }
  }
}'

<COMPANY-URL> - The link to the NVIDIA Run:ai user interface
<TOKEN> - The API access token obtained in Step 1
<PROJECT-ID> - The ID of the Project the workload is running on. You can get the Project ID via the Get Projects API.
<CLUSTER-UUID> - The unique identifier of the Cluster. You can get the Cluster UUID via the Get Clusters API.

Note

The above API snippet runs with NVIDIA Run:ai clusters of 2.18 and above only.

Step 4: Submitting the first training workload (team-b)

Go to the Workload Manager → Workloads
Click +NEW WORKLOAD and select Training
Select the cluster where the previous training was created
Select the project named team-b
Under Workload architecture, select Standard
Select a preconfigured template or select the Start from scratch to launch a new training quickly
Enter b1 as the workload name
Click CONTINUE In the next step:
Select the environment created in Step 2
Select the compute resource created in Step 2
Click CREATE TRAINING

Copy the following command to your terminal. For more details, see CLI reference:

runai training submit b1 -i runai.jfrog.io/demo/quickstart -g 1 -p team-b

Copy the following command to your terminal. For more details, see CLI reference:

runai submit b1 -i runai.jfrog.io/demo/quickstart -g 1 -p team-b

Copy the following command to your terminal. Make sure to update the following parameters. For more details, see Trainings API.

curl --location 'https://<COMPANY-URL>/api/v1/workloads/trainings' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \
--data '{
  "name": "b1",
  "projectId": "<PROJECT-ID>",
  "clusterId": "<CLUSTER-UUID>",
  "spec": {
    "image":"runai.jfrog.io/demo/quickstart",
    "compute": {
      "gpuDevicesRequest": 1
    }
  }
}'

<COMPANY-URL> - The link to the NVIDIA Run:ai user interface
<TOKEN> - The API access token obtained in Step 1
<PROJECT-ID> - The ID of the Project the workload is running on. You can get the Project ID via the Get Projects API.
<CLUSTER-UUID> - The unique identifier of the Cluster. You can get the Cluster UUID via the Get Clusters API.

Note

The above API snippet runs with NVIDIA Run:ai clusters of 2.18 and above only.

Over quota status

System status after run:

System status after run:

~ runai workload list -A
Workload  Type      Status   Project  Running/Req.Pods  GPU Alloc.
────────────────────────────────────────────────────────────────────────────
a2       Training   Running   team-a        1/1           2.00
b1       Training   Running   team-b        1/1           1.00
a1       Training.  Running   team-a        0/1           1.00

System status after run:

~ runai list -A
Workload  Type      Status   Project  Running/Req.Pods  GPU Alloc.
────────────────────────────────────────────────────────────────────────────
a2       Training   Running   team-a        1/1           2.00
b1       Training   Running   team-b        1/1           1.00
a1       Training.  Running   team-a        0/1           1.00

System status after run:

curl --location 'https://<COMPANY-URL>/api/v1/workloads' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \ #<TOKEN> is the API access token obtained in Step 1.
--data ''

Step 5: Submitting the second training workload (team-b)

Go to the Workload Manager → Workloads
Click +NEW WORKLOAD and select Training
Select the cluster where the previous training was created
Select the project named team-b
Under Workload architecture, select Standard
Select a preconfigured template or select the Start from scratch to launch a new training quickly
Enter b2 as the workload name
Click CONTINUE In the next step:
Select the environment created in Step 2
Select the compute resource created in Step 2
Click CREATE TRAINING

Copy the following command to your terminal. For more details, see CLI reference:

runai training submit b2 -i runai.jfrog.io/demo/quickstart -g 1 -p team-b

Copy the following command to your terminal. For more details, see CLI reference:

runai submit b2 -i runai.jfrog.io/demo/quickstart -g 1 -p team-b

Copy the following command to your terminal. Make sure to update the following parameters. For more details, see Trainings API.

curl --location 'https://<COMPANY-URL>/api/v1/workloads/trainings' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \
--data '{
  "name": "b2",
  "projectId": "<PROJECT-ID>",
  "clusterId": "<CLUSTER-UUID>",
  "spec": {
    "image":"runai.jfrog.io/demo/quickstart",
    "compute": {
      "gpuDevicesRequest": 1
    }
  }
}'

<COMPANY-URL> - The link to the NVIDIA Run:ai user interface
<TOKEN> - The API access token obtained in Step 1
<PROJECT-ID> - The ID of the Project the workload is running on. You can get the Project ID via the Get Projects API.
<CLUSTER-UUID> - The unique identifier of the Cluster. You can get the Cluster UUID via the Get Clusters API.

Note

The above API snippet runs with NVIDIA Run:ai clusters of 2.18 and above only.

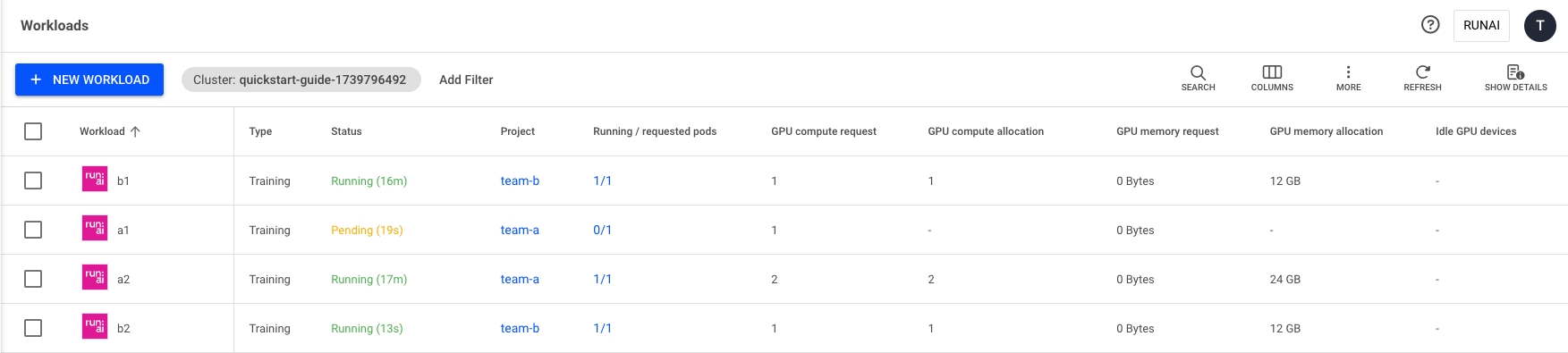

Basic fairness and preemption status

Workloads status after run:

Workloads status after run:

~ runai workload list -A
Workload  Type      Status   Project  Running/Req.Pods  GPU Alloc.
────────────────────────────────────────────────────────────────────────────
a2       Training   Running   team-a        1/1           2.00
b1       Training   Running   team-b        1/1           1.00
b2       Training   Running   team-b        1/1           1.00
a1       Training.  Pending   team-a        0/1           1.00

Workloads status after run:

~ runai list -A
Workload   Type     Status   Project  Running/Req.Pods  GPU Alloc.
────────────────────────────────────────────────────────────────────────────
a2       Training   Running   team-a        1/1           2.00
b1       Training   Running   team-b        1/1           1.00
b2       Training   Running   team-b        1/1           1.00
a1       Training.  Pending   team-a        0/1           1.00

Workloads status after run:

curl --location 'https://<COMPANY-URL>/api/v1/workloads' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <TOKEN>' \ #<TOKEN> is the API access token obtained in Step 1.
--data ''

Next steps

Manage and monitor your newly created workload using the Workloads table.
